LED GRN/ORANGE DIFFUSED SMD

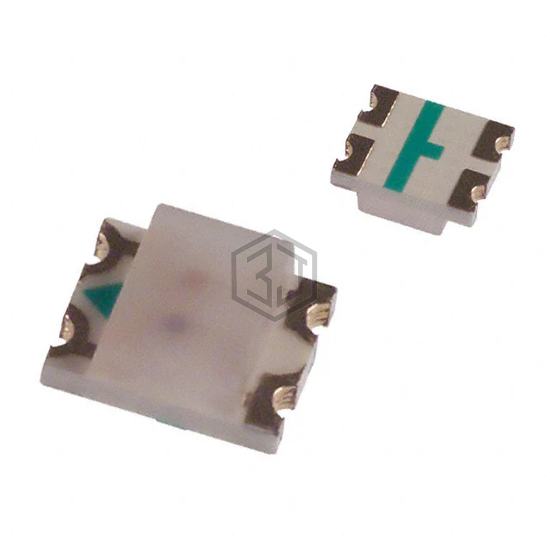

HSMF-C157 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GRN/ORANGE DIFFUSED SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.2V Orange, package / case 1210 (3225 Metric), color Green, Orange.
In Stock: 412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 15mcd Green, 8mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Orange |
| Current - Test | 20mA Green, 20mA Orange |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 604nm Orange |
| Wavelength - Peak | 570nm Green, 605nm Orange |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for HSMF-C157 and get a quote within 24 hours.
