LED GREEN/RED DIFFUSED CHIP SMD

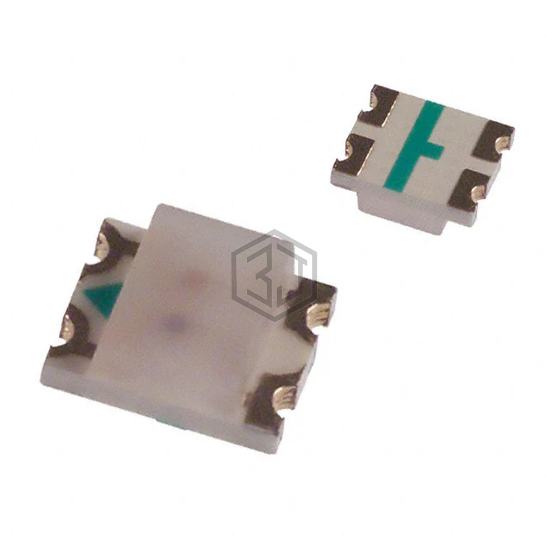

HSMF-C155 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GREEN/RED DIFFUSED CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.1V Red, package / case 1210 (3225 Metric), color Green, Red.
In Stock: 186,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 15mcd Green, 10mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 626nm Red |
| Wavelength - Peak | 570nm Green, 630nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for HSMF-C155 and get a quote within 24 hours.
