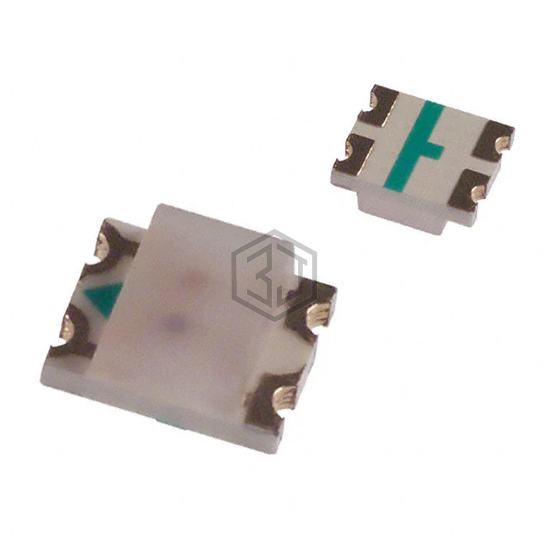

LED RED/YELLOW DIFF CHIP SMD
HSMF-C153 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RED/YELLOW DIFF CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 2.1V Yellow, package / case 1210 (3225 Metric), color Red, Yellow.
In Stock: 23,319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 10mcd Red, 8mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.1V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 586nm Yellow |
| Wavelength - Peak | 630nm Red, 589nm Yellow |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for HSMF-C153 and get a quote within 24 hours.
