LED GREEN/RED DIFFUSED SMD

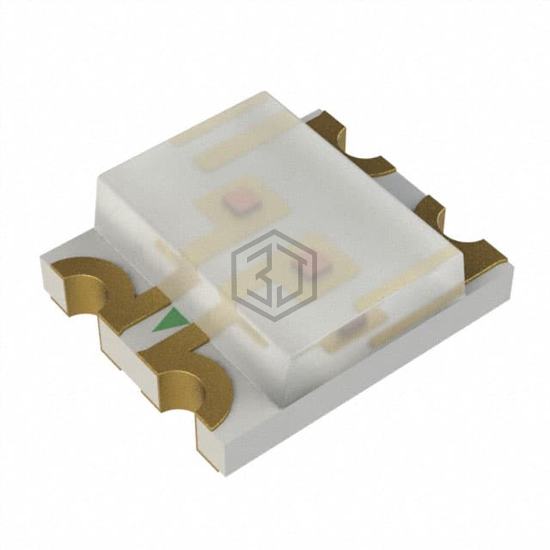

HSMF-C150 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GREEN/RED DIFFUSED SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case 4-SMD, No Lead, color Green, Red.
In Stock: 24,548
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 45mcd Green, 79mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 170° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 632nm Red |
| Wavelength - Peak | 570nm Green, 644nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for HSMF-C150 and get a quote within 24 hours.
