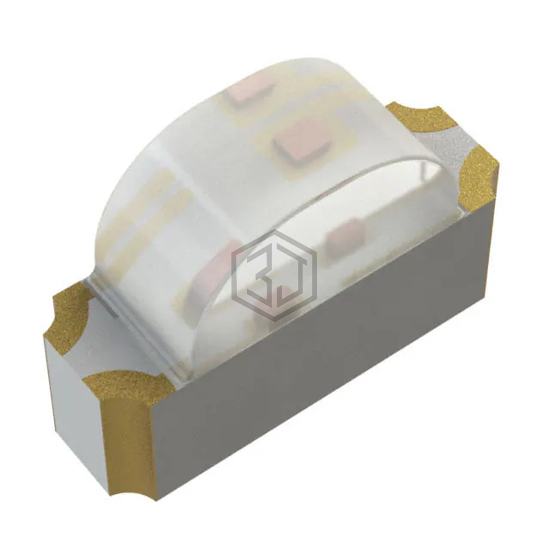

LED BLUE/RED CLEAR SMD R/A
HSMF-C146 is a LED Indication - Discrete manufactured by Broadcom Limited. LED BLUE/RED CLEAR SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 3.4V Blue, 2.3V Red, package / case 4-SMD, color Blue, Red.
In Stock: 2,334
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 75mcd Blue, 79mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.4V Blue, 2.3V Red |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 464nm Blue, 632nm Red |
| Wavelength - Peak | 459nm Blue, 644nm Red |
| Features | - |
| Package / Case | 4-SMD |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.10mm |
