LED GRN/RED CLEAR SMD R/A

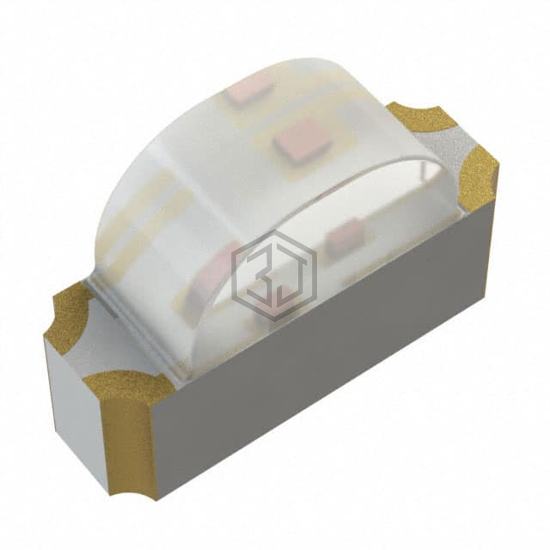

HSMF-C145 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GRN/RED CLEAR SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 3.4V Green, 2V Red, package / case 4-SMD, color Green, Red.
In Stock: 42,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 223mcd Green, 79mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.4V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 523nm Green, 632nm Red |
| Wavelength - Peak | 517nm Green, 644nm Red |
| Features | - |
| Package / Case | 4-SMD |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.10mm |
