LED AMBER/GREEN CLEAR SMD R/A

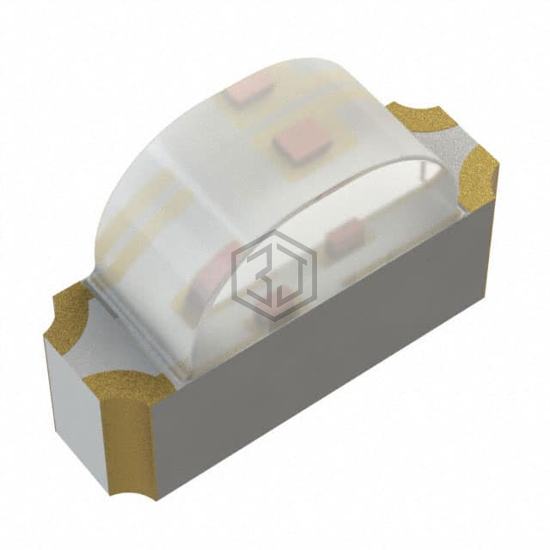

HSMF-C143 is a LED Indication - Discrete manufactured by Broadcom Limited. LED AMBER/GREEN CLEAR SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2V Amber, 2V Green, package / case 4-SMD, color Amber, Green.
In Stock: 11,937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Amber, Green |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 103mcd Amber, 33mcd Green |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Amber, 2V Green |
| Current - Test | 20mA Amber, 20mA Green |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 589nm Amber, 570nm Green |
| Wavelength - Peak | 591nm Amber, 571nm Green |
| Features | - |
| Package / Case | 4-SMD |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for HSMF-C143 and get a quote within 24 hours.
