CHIP,TRICLR,TOP MT,RGB

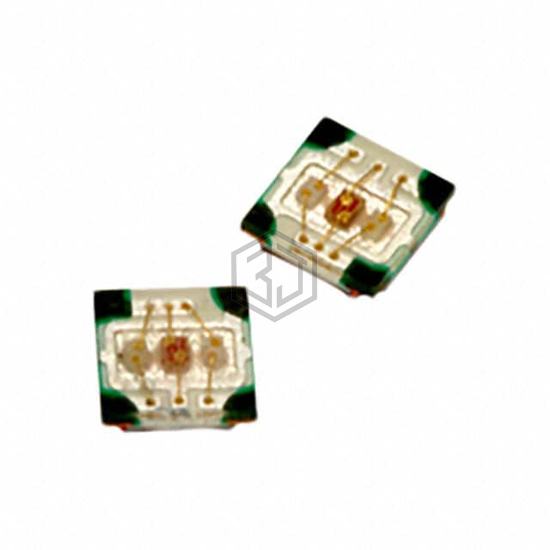

HSMF-C11B is a LED Indication - Discrete manufactured by Broadcom Limited. CHIP,TRICLR,TOP MT,RGB. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.85V Green, 2.85V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 23,457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 165mcd Red, 281.25mcd Green, 65.25mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 1.08mm x 1.08mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.85V Green, 2.85V Blue |
| Current - Test | 5mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 527nm Green, 473nm Blue |
| Wavelength - Peak | 635nm Red, 520nm Green, 469nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 0404 |
| Size / Dimension | 1.08mm L x 1.08mm W |
| Height (Max) | 0.35mm |
Submit your RFQ for HSMF-C11B and get a quote within 24 hours.
