LED RGB DIFFUSED CHIP SMD

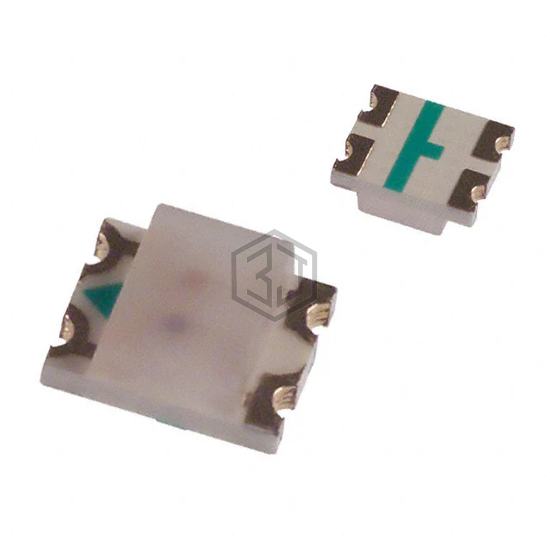

HSMF-C118 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RGB DIFFUSED CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 3.5V Green, 3.5V Blue, package / case 1210 (3225 Metric), color Red, Green, Blue (RGB).
In Stock: 16,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 90mcd Red, 120mcd Green, 40mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.5V Green, 3.5V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 135° Red, 130° Green, 125° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for HSMF-C118 and get a quote within 24 hours.
