LED RGB DIFFUSED CHIP SMD

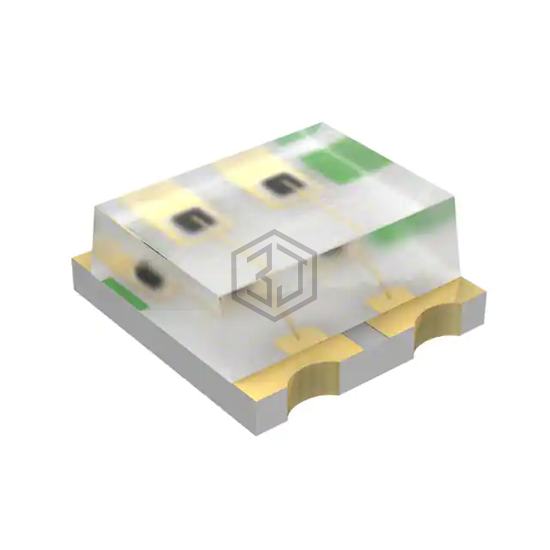

HSMF-C114 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RGB DIFFUSED CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.9V Red, 3.4V Green, 3.4V Blue, package / case 0606 (1616 Metric), color Red, Green, Blue (RGB).
In Stock: 38,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 85mcd Red, 180mcd Green, 70mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 140° Red, 145° Green, 145° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.35mm |
Submit your RFQ for HSMF-C114 and get a quote within 24 hours.
