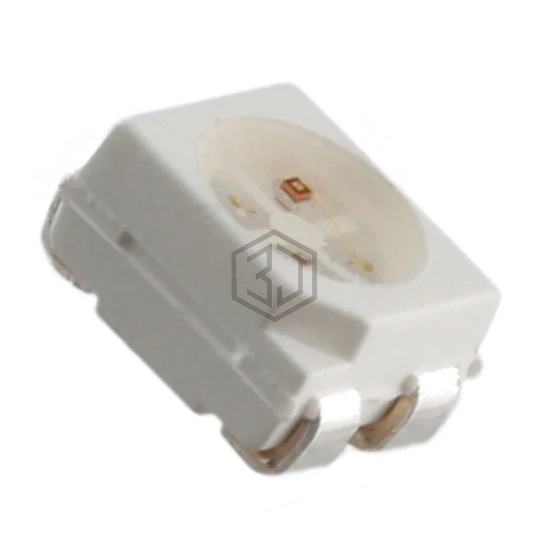

LED RED/YELLOW CLEAR 4PLCC SMD
HSMF-A202-A00J1 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RED/YELLOW CLEAR 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Red, 2.2V Yellow, package / case 4-PLCC, color Red, Yellow.
In Stock: 20,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 16mcd Red, 12mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 2.2V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 585nm Yellow |
| Wavelength - Peak | 635nm Red, 583nm Yellow |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for HSMF-A202-A00J1 and get a quote within 24 hours.
