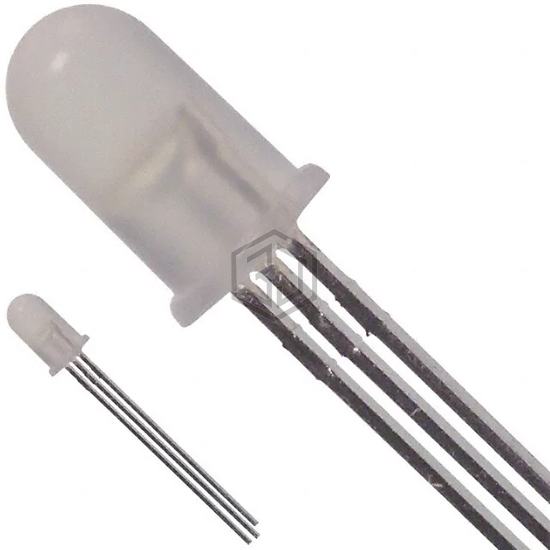

LED GRN/RED DIFFUSED T-1 3/4 T/H
HLMP-4000 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GRN/RED DIFFUSED T-1 3/4 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Green, 1.9V Red, package / case Radial - 3 Leads, color Green, Red.
In Stock: 39,625
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 4.2mcd Green, 2.1mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.9V Red |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 65° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 570nm Green, 626nm Red |
| Wavelength - Peak | 568nm Green, 635nm Red |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | - |
| Height (Max) | 9.19mm |
Submit your RFQ for HLMP-4000 and get a quote within 24 hours.
