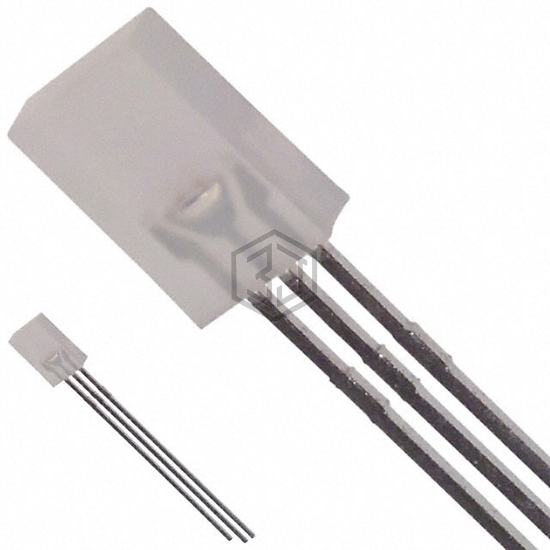

LED GRN/RED DIFF RECT 2X5MM T/H
HLMP-0800 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GRN/RED DIFF RECT 2X5MM T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Green, 1.9V Red, package / case Radial - 3 Leads, color Green, Red.
In Stock: 142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 2.6mcd Green, 2.1mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.06mm x 2.11mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.9V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 570nm Green, 626nm Red |
| Wavelength - Peak | 568nm Green, 635nm Red |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | Rectangular 2mmx5mm |
| Size / Dimension | - |
| Height (Max) | 8.00mm |
Submit your RFQ for HLMP-0800 and get a quote within 24 hours.
