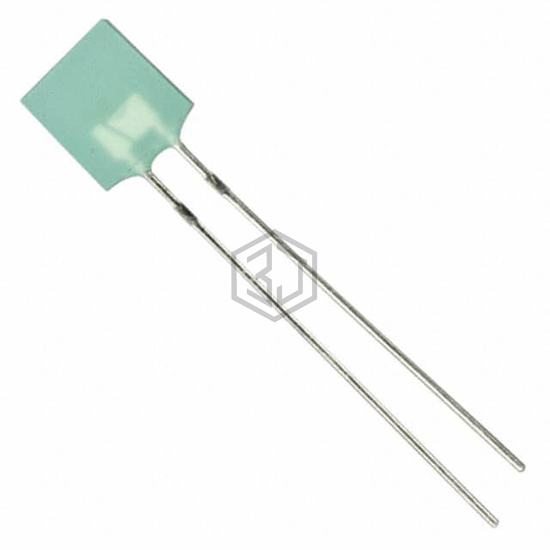

HLMP-0504 - Broadcom Limited - LED Indication - Discrete

HLMP-0504

Broadcom Limited

LED GREEN DIFFUSED RECT T/H

HLMP-0504 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GREEN DIFFUSED RECT T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V, package / case Radial, color Green.

In Stock: 4,511

Product Attributes

AttributeValue
Product StatusActive
ColorGreen
ConfigurationStandard
Lens ColorGreen
Lens TransparencyDiffused
Millicandela Rating2.6mcd
Lens StyleRectangle with Flat Top
Lens Size7.31mm x 2.35mm
Voltage - Forward (Vf) (Typ)2.2V
Current - Test20mA
Viewing Angle100°
Mounting TypeThrough Hole
Wavelength - Dominant569nm
Wavelength - Peak565nm
Features-
Package / CaseRadial
Supplier Device PackageRectangular
Size / Dimension-
Height (Max)8.00mm

Frequently Asked Questions

HLMP-0504 is a LED Indication - Discrete manufactured by Broadcom Limited. LED GREEN DIFFUSED RECT T/H

The mounting type of HLMP-0504 is Through Hole.

The supply voltage of HLMP-0504 is 2.2V.

The package type of HLMP-0504 is Radial.

The wavelength of HLMP-0504 is 565nm.
