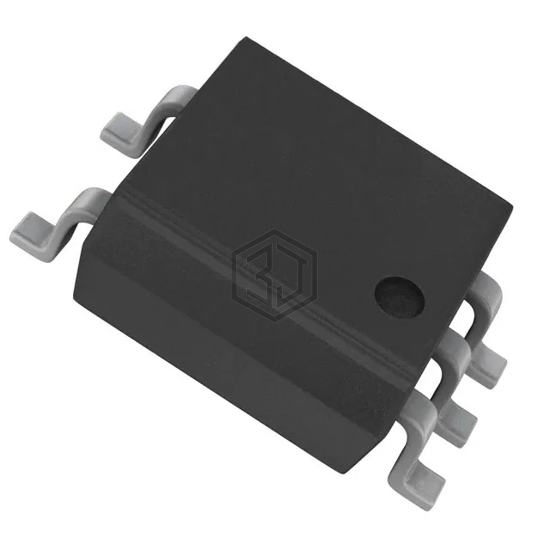

OPTOISO 3.75KV DARLINGTON 6SOIC
HCPL-M701 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV DARLINGTON 6SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 9,184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 500% @ 1.6mA |
| Current Transfer Ratio (Max) | 3500% @ 500µA |
| Turn On / Turn Off Time (Typ) | 500ns, 1µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 18V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | - |
Submit your RFQ for HCPL-M701 and get a quote within 24 hours.
