OPTOISO 1.5KV 2CH OPN COL 20LCCC

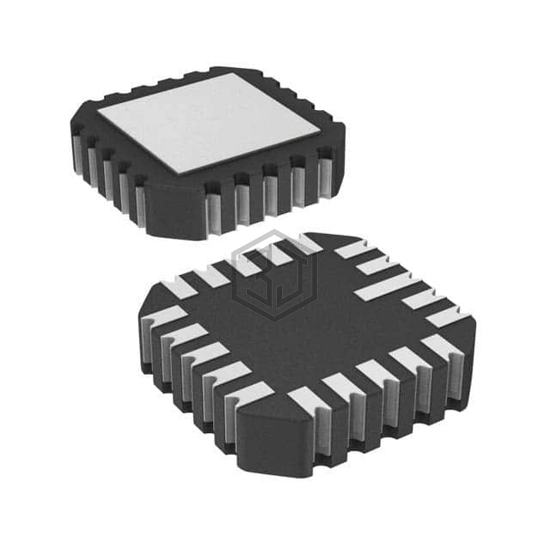

HCPL-6630 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 2CH OPN COL 20LCCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 20-CLCC.
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 25 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 35ns, 35ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
Submit your RFQ for HCPL-6630 and get a quote within 24 hours.
