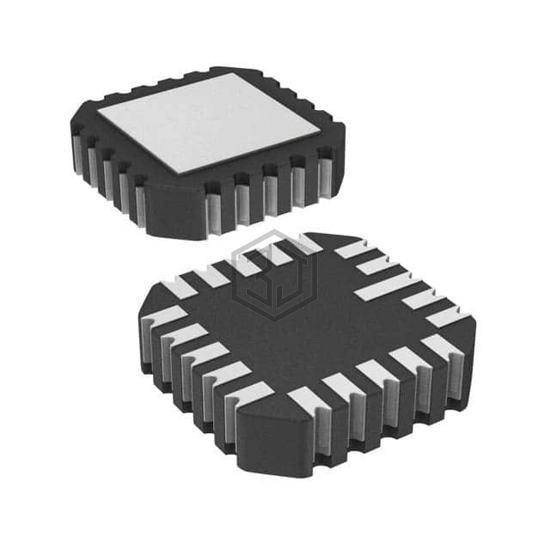

OPTOISO 1.5KV PUSH PULL 20LCCC
HCPL-6230 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV PUSH PULL 20LCCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 20V, package / case 20-CLCC.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 15 mA |
| Data Rate | 5MBd |
| Propagation Delay tpLH / tpHL (Max) | 350ns, 350ns |
| Rise / Fall Time (Typ) | 45ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 8mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
Submit your RFQ for HCPL-6230 and get a quote within 24 hours.
