OPTOISO 1.5KV OPEN COLL 16DIP GW

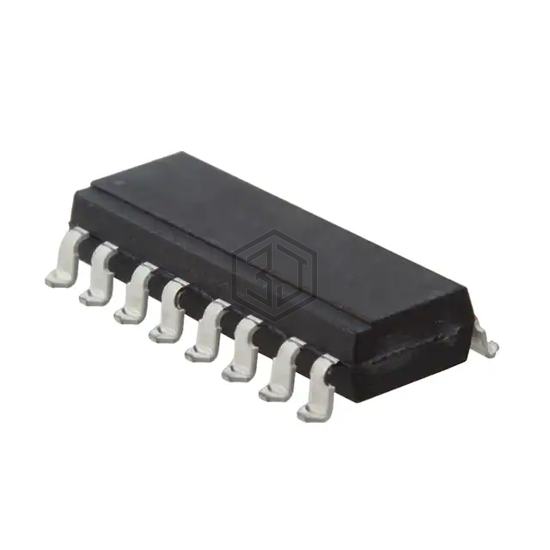

HCPL-1930#300 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV OPEN COLL 16DIP GW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 16-SMD, Gull Wing.
In Stock: 5,711
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 25 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 30ns, 24ns |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | 60mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, Gull Wing |
| Supplier Device Package | 16-DIP Gull Wing |
Submit your RFQ for HCPL-1930#300 and get a quote within 24 hours.
