OPTOISO 5KV PUSH PULL 8DIP

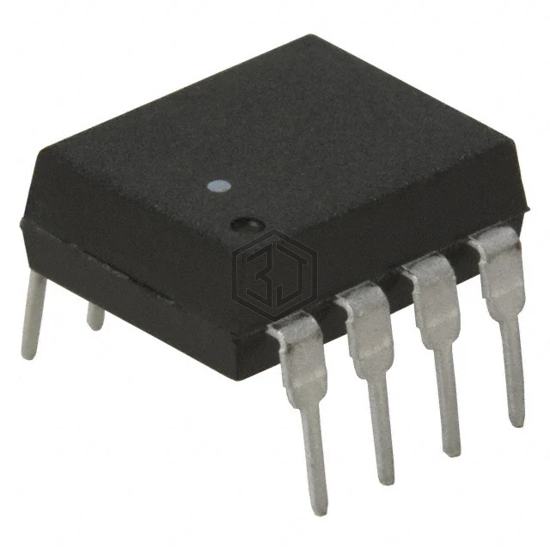

HCNW2201-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV PUSH PULL 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 20V, package / case 8-DIP (0.400", 10.16mm).
In Stock: 9,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | 5MBd |
| Propagation Delay tpLH / tpHL (Max) | 180ns, 160ns (Typ) |
| Rise / Fall Time (Typ) | 30ns, 7ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 10mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for HCNW2201-000E and get a quote within 24 hours.
