LED RGB DIFFUSED 6PLCC SMD

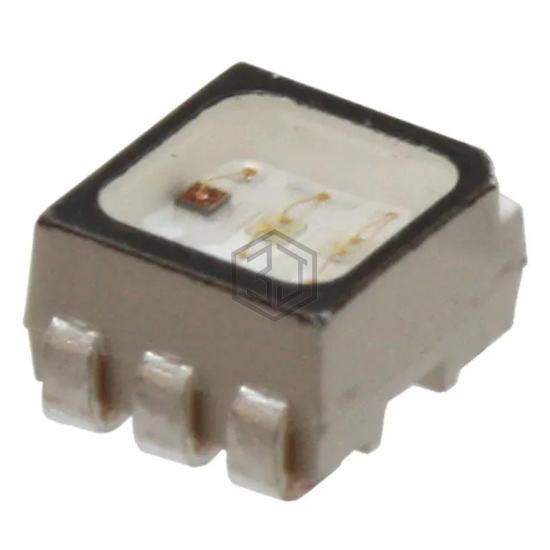

ASMT-YTD7-0AA02 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RGB DIFFUSED 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.1V Green, 3.1V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 18,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 650mcd Red, 1900mcd Green, 384mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 2.30mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 529nm Green, 469nm Blue |
| Wavelength - Peak | 630nm Red, 522nm Green, 465nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 2.00mm |
Submit your RFQ for ASMT-YTD7-0AA02 and get a quote within 24 hours.
