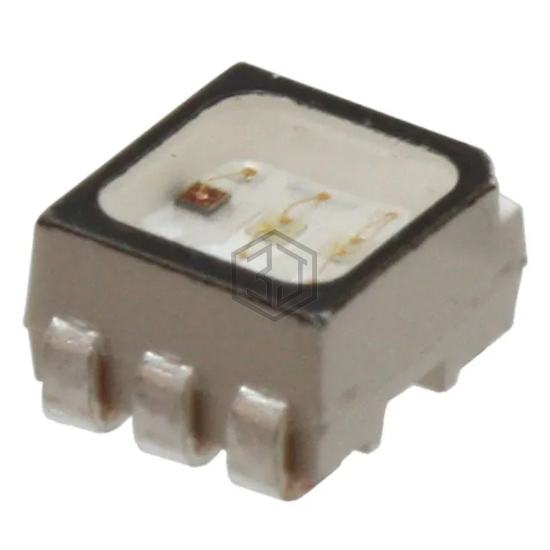

LED RGB CLEAR 6PLCC SMD
ASMT-YTD2-0BB02 is a LED Indication - Discrete manufactured by Broadcom Limited. LED RGB CLEAR 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.2V Green, 3.2V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 20,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 745mcd Red, 1600mcd Green, 380mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 2.30mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | 629nm Red, 521nm Green, 464nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 2.00mm |
