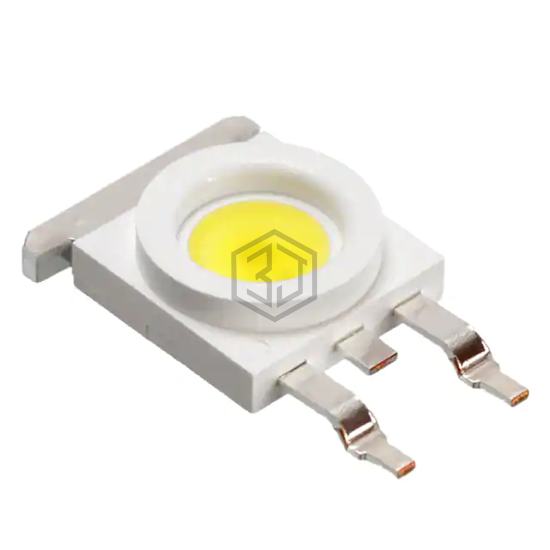

LED MOONSTONE WM WHT 3300K TO252
ASMT-MY22-NMP00 is a LED Lighting - White manufactured by Broadcom Limited. LED MOONSTONE WM WHT 3300K TO252. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.2V, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, color White, Warm.
In Stock: 1,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | White, Warm |
| CCT (K) | 3300K (2600K ~ 4000K) |
| Flux @ 85°C, Current - Test | 80lm |
| Flux @ 25°C, Current - Test | 100lm (95lm ~ 140lm) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lumens/Watt @ Current - Test | 89 lm/W |
| CRI (Color Rendering Index) | - |
| Current - Max | 700mA |
| Viewing Angle | 110° |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for ASMT-MY22-NMP00 and get a quote within 24 hours.
