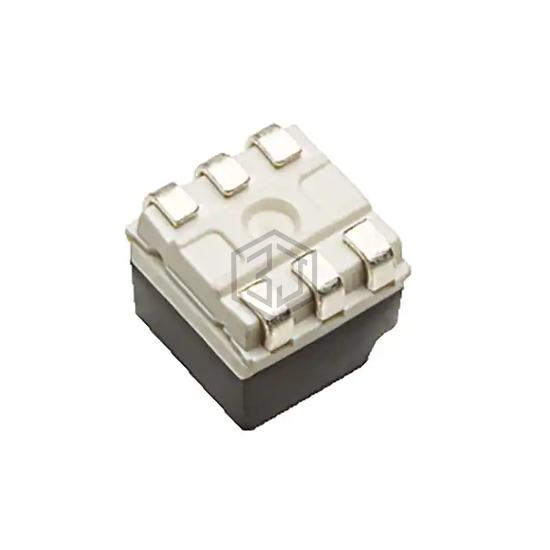

2828 TRICOLOR PLCC6 LEDS
ASMB-UTF0-0D20B is a LED Indication - Discrete manufactured by Broadcom Limited. 2828 TRICOLOR PLCC6 LEDS. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.1V Green, 3.1V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 134,808
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 650mcd Red, 1420mcd Green, 360mcd Blue |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 110° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 620nm Red, 524nm Green, 471nm Blue |
| Wavelength - Peak | 628nm Red, 518nm Green, 467nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 2.80mm L x 2.70mm W |
| Height (Max) | 2.60mm |
Submit your RFQ for ASMB-UTF0-0D20B and get a quote within 24 hours.
