2121 PLCC4 TRICOLOR

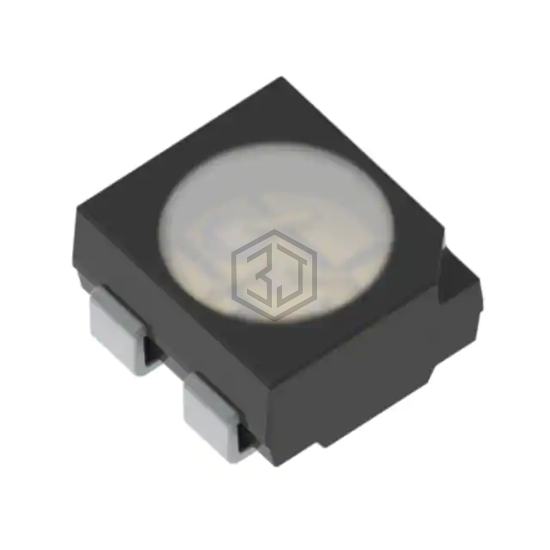

ASMB-LTB2-0A333 is a LED Indication - Discrete manufactured by Broadcom Limited. 2121 PLCC4 TRICOLOR. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 2.9V Green, 2.9V Blue, package / case 4-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 39,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 390mcd Red, 870mcd Green, 190mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 1.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.9V Green, 2.9V Blue |
| Current - Test | 15mA Red, 10mA Green, 10mA Blue |
| Viewing Angle | 110° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 522nm Green, 468nm Blue |
| Wavelength - Peak | 630nm Red, 516nm Green, 464nm Blue |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 2.10mm L x 2.10mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for ASMB-LTB2-0A333 and get a quote within 24 hours.
