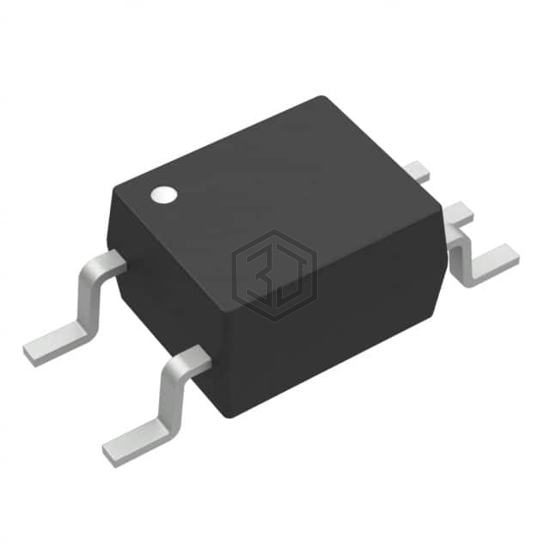

OPTOISO 4KV PUSH PULL 5SOIC
ACPL-M72T-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 4KV PUSH PULL 5SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 2,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 4000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | - |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SO |
Submit your RFQ for ACPL-M72T-000E and get a quote within 24 hours.
