OPTOISO 5KV 1CH GATE DRIVER 8SO

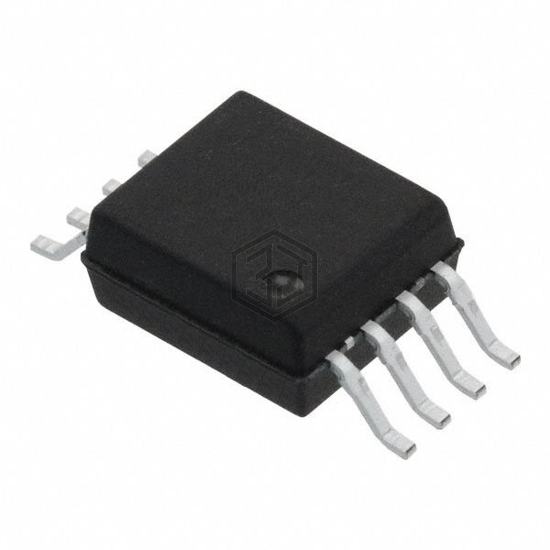

ACPL-K34T-560E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SOIC (0.268", 6.81mm Width).
In Stock: 1,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 110ns, 110ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 10V ~ 20V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) |
| Supplier Device Package | 8-SO Stretched |
| Approval Agency | CSA, IEC/EN/DIN, UR |
Submit your RFQ for ACPL-K34T-560E and get a quote within 24 hours.
