OPTOISO 1.5KV GATE DRVR 16SMDGW

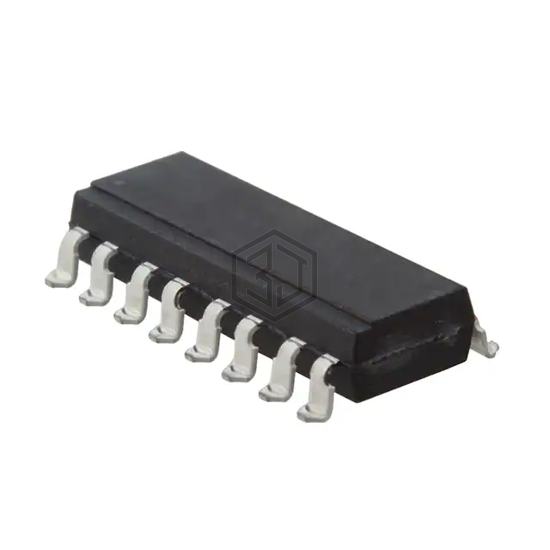

ACPL-5161-300 is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 1.5KV GATE DRVR 16SMDGW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 16-SMD, Gull Wing.
In Stock: 3,570
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 9kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, Gull Wing |
| Supplier Device Package | 16-SMD Gull Wing |
| Approval Agency | - |
Submit your RFQ for ACPL-5161-300 and get a quote within 24 hours.
