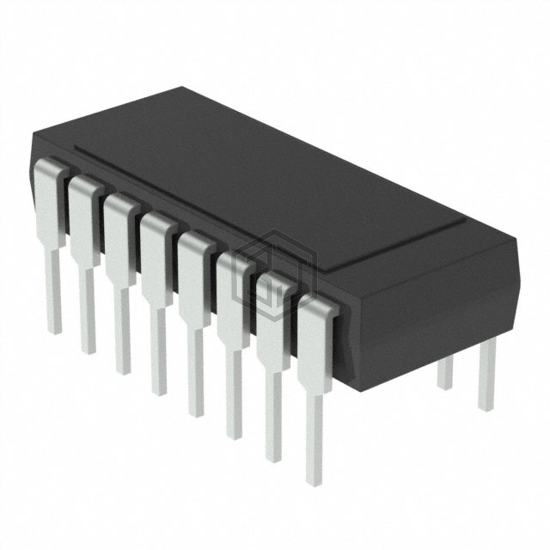

OPTOISO 1.5KV 4CH DARLNG 16-CDIP
ACPL-177KL-200 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARLNG 16-CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 4,207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 4 |
| Voltage - Isolation | 1500VDC |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 2µs, 6µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 40mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 10 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
Submit your RFQ for ACPL-177KL-200 and get a quote within 24 hours.
