OPTOISO 1.5KV 4CH DARL 16-DIP BJ

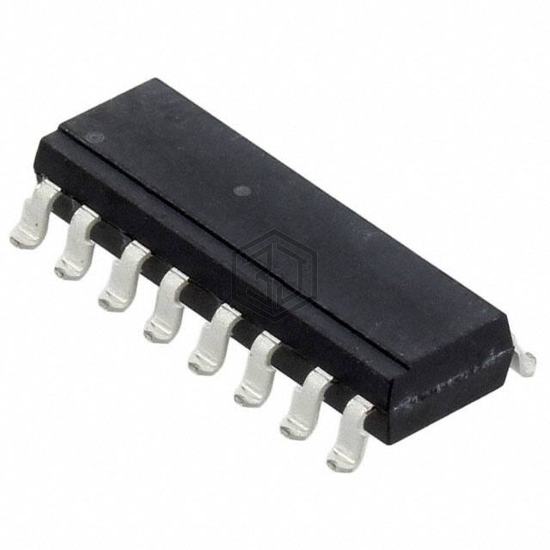

ACPL-1770L-100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARL 16-DIP BJ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-SMD, Butt Joint.
In Stock: 4,186
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 4 |
| Voltage - Isolation | 1500VDC |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 2µs, 6µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 40mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 10 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, Butt Joint |
| Supplier Device Package | 16-DIP Butt Joint |
Submit your RFQ for ACPL-1770L-100 and get a quote within 24 hours.
