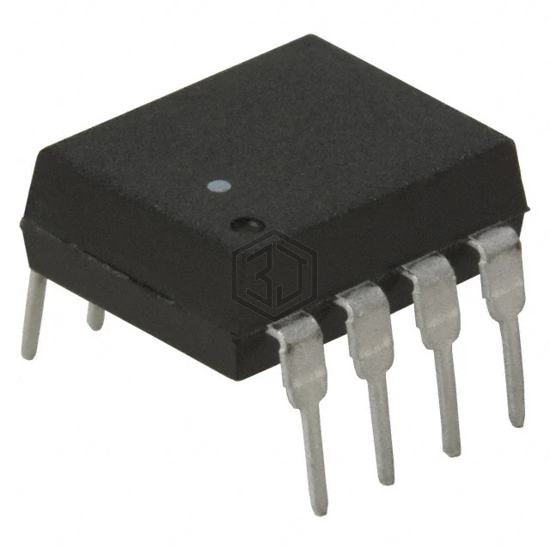

OPTOISO 5KV 1CH GATE DRIVER 8DIP
ACNW3410-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.45V, package / case 8-DIP (0.400", 10.16mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 80ns |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, IEC/EN/DIN, UR |
