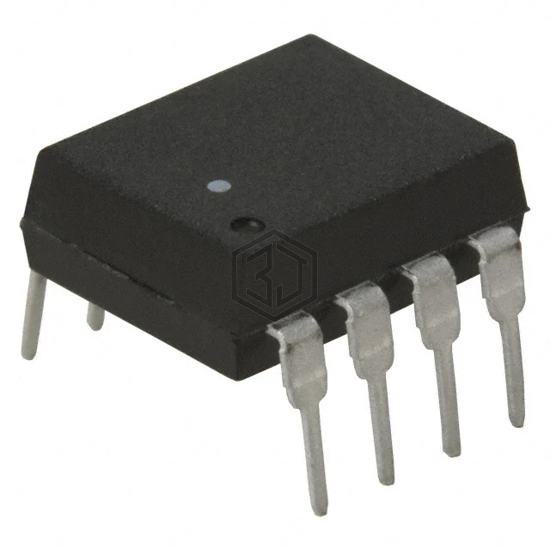

OPTOISO 5KV TRI-STATE 8DIP
ACNW261L-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV TRI-STATE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - supply 2.7V ~ 5.5V, package / case 8-DIP (0.400", 10.16mm).
In Stock: 5,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Tri-State |
| Current - Output / Channel | 10 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 95ns, 95ns |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 8mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
