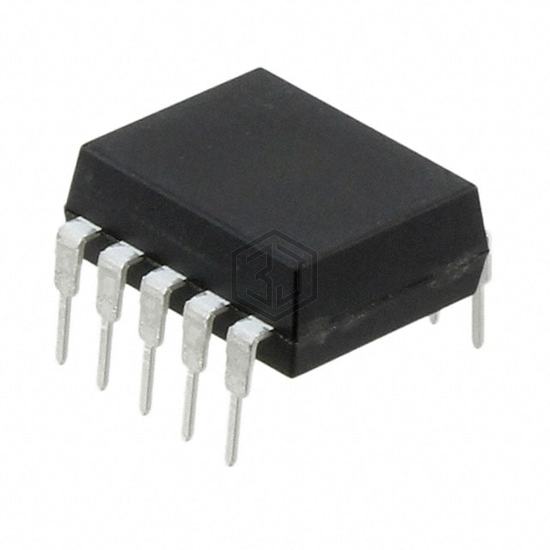

OPTOISO 7.5KV 1CH GATE DVR 10DIP
ACNV3130-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 7.5KV 1CH GATE DVR 10DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.6V, package / case 10-DIP (0.512", 13.01mm).
In Stock: 4,118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 7500Vrms |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP (0.512", 13.01mm) |
| Supplier Device Package | 10-DIP |
| Approval Agency | CSA, IEC/EN/DIN, UR |
Submit your RFQ for ACNV3130-000E and get a quote within 24 hours.
