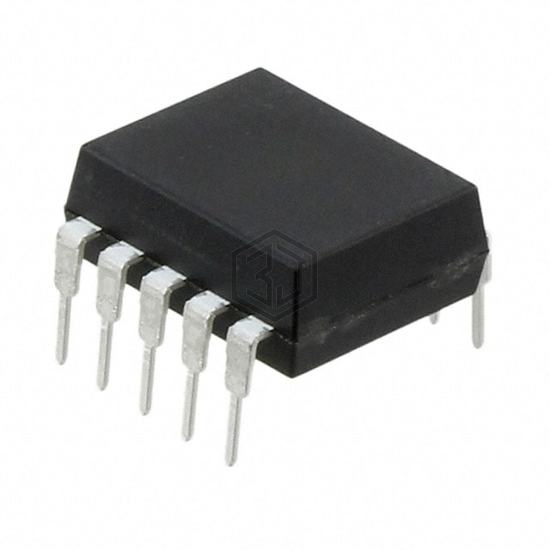

OPTOISO 5KV OPEN COLLECTOR 10DIP
ACNV260E-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV OPEN COLLECTOR 10DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 10-DIP (0.512", 13.01mm).
In Stock: 4,130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns |
| Rise / Fall Time (Typ) | 25ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.64V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP (0.512", 13.01mm) |
| Supplier Device Package | 10-DIP |
Submit your RFQ for ACNV260E-000E and get a quote within 24 hours.
