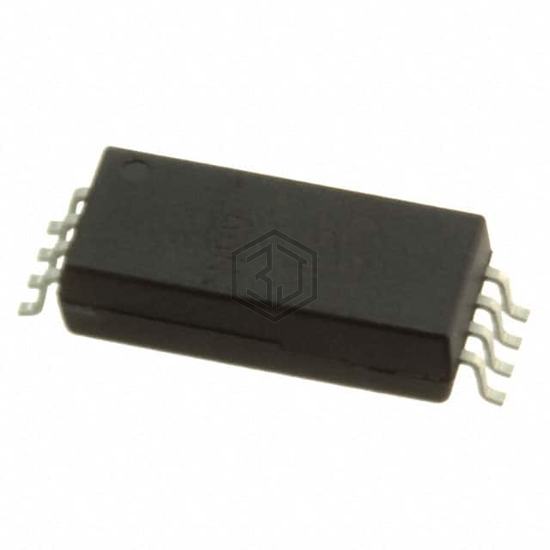

15MM CTI600V OPTOCOUPLER (1MBD)
ACNT-H511C-500E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. 15MM CTI600V OPTOCOUPLER (1MBD). Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.535", 13.60mm Width).
In Stock: 1,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 7500Vrms |
| Current Transfer Ratio (Min) | 31% @ 12mA |
| Current Transfer Ratio (Max) | 80% @ 12mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 24V |
| Current - Output / Channel | 12mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.535", 13.60mm Width) |
| Supplier Device Package | 8-SO Stretched |
Submit your RFQ for ACNT-H511C-500E and get a quote within 24 hours.
