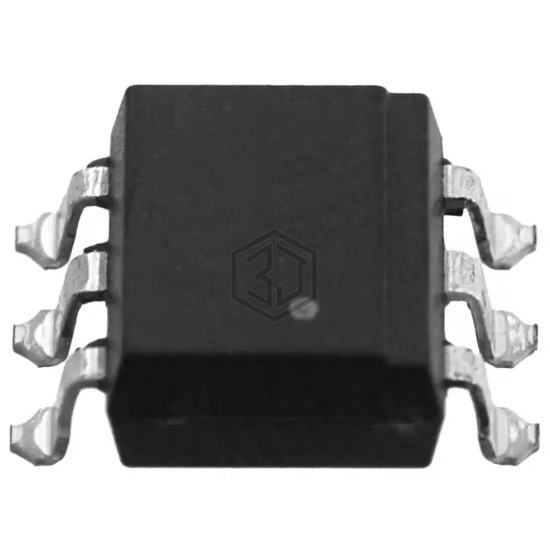

OPTOISO 3.75KV DARL W/BASE 6SMD
4N46-560E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV DARL W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SMD, Gull Wing.
In Stock: 7,247
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 200% @ 10mA |
| Current Transfer Ratio (Max) | 1000% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5µs, 150µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington with Base |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
Submit your RFQ for 4N46-560E and get a quote within 24 hours.
