TW LED ARRAY, LES=22MM, INTEGRAT

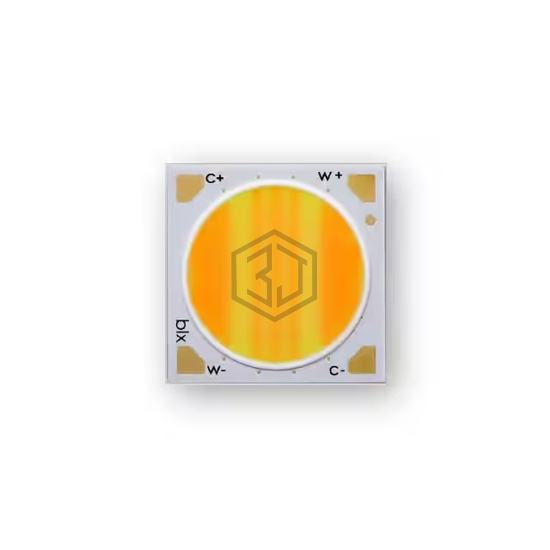

BXRV-TR-2765G-65A0-A-23-S2 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. TW LED ARRAY, LES=22MM, INTEGRAT. Key specifications: voltage - forward (vf) (typ) 52V Warm White, 53V Cool White, color White, Warm / White, Cool, current - max 1.4A, size / dimension 28.00mm L x 28.00mm W.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| CCT (K) | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 5168lm Warm White, 6106lm Cool White |
| Current - Test | 900mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 52V Warm White, 53V Cool White |
| Lumens/Watt @ Current - Test | 110 lm/W Warm White, 128 lm/W Cool White |
| Current - Max | 1.4A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 23.10mm Dia |
| Lens Type | Flat |
