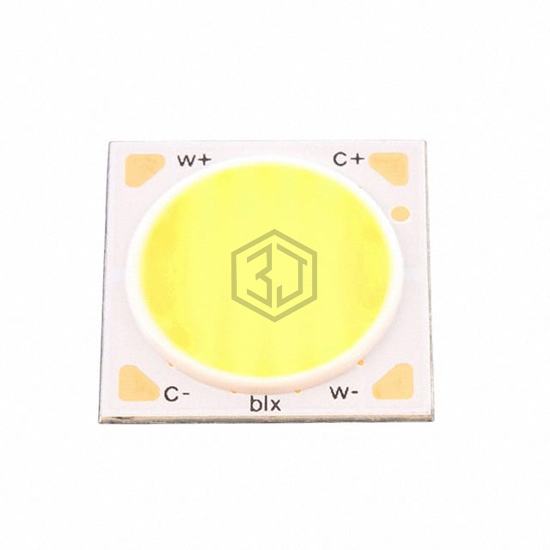

VESTA TW15 GEN 2
BXRV-TR-2765G-30A0-A-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VESTA TW15 GEN 2. Key specifications: voltage - forward (vf) (typ) 35.5V, color White, Warm / White, Cool, current - max 950mA, size / dimension 21.00mm L x 21.00mm W.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| CCT (K) | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2954lm (Typ) |
| Current - Test | 650mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 35.5V |
| Lumens/Watt @ Current - Test | 128 lm/W |
| Current - Max | 950mA |
| CRI (Color Rendering Index) | 92 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 21.00mm L x 21.00mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 16.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-TR-2765G-30A0-A-23 and get a quote within 24 hours.
