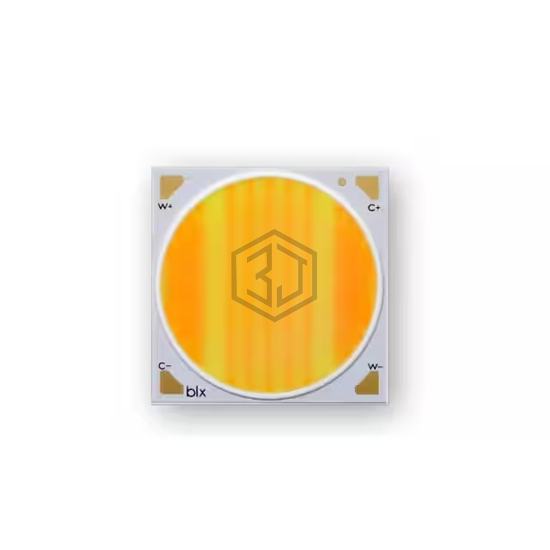

TW LED ARRAY, LES=29MM, INTEGRAT
BXRV-TR-2765G-1KA0-A-23-S2 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. TW LED ARRAY, LES=29MM, INTEGRAT. Key specifications: voltage - forward (vf) (typ) 52.1V Warm White, 52.4V Cool White, color White, Warm / White, Cool, current - max 1.8A, size / dimension 32.05mm L x 32.05mm W.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| CCT (K) | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 5182lm Warm White, 7043lm Cool White |
| Current - Test | 1.05A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 52.1V Warm White, 52.4V Cool White |
| Lumens/Watt @ Current - Test | 113 lm/W Warm White, 128 lm/W Cool White |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 32.05mm L x 32.05mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 29.60mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-TR-2765G-1KA0-A-23-S2 and get a quote within 24 hours.
