TW LED ARRAY, LES=6MM, VF=36V, I

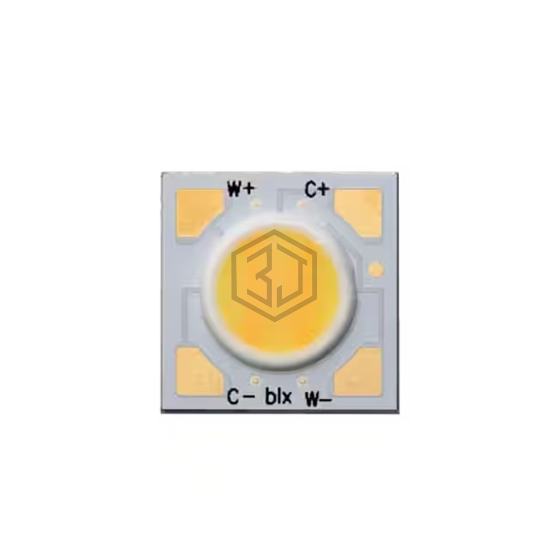

BXRV-TR-2765G-06A0-B-23-S2 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. TW LED ARRAY, LES=6MM, VF=36V, I. Key specifications: voltage - forward (vf) (typ) 36V Warm White, 36V Cool White, color White, Warm / White, Cool, current - max 200mA, size / dimension 12.50mm L x 12.50mm W.
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| CCT (K) | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 500lm Warm White, 600lm Cool White |
| Current - Test | 150mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 36V Warm White, 36V Cool White |
| Lumens/Watt @ Current - Test | 92 lm/W Warm White, 110 lm/W Cool White |
| Current - Max | 200mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Height | 2.00mm |
| Light Emitting Surface (LES) | 6.80mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-TR-2765G-06A0-B-23-S2 and get a quote within 24 hours.
