VESTA TW29 GEN 2

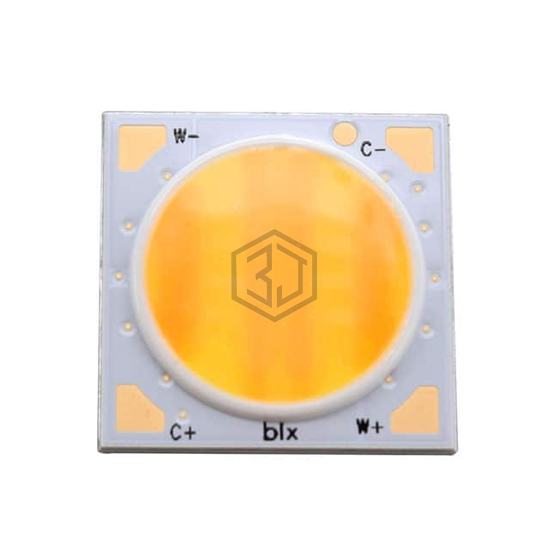

BXRV-TR-2750G-1KA0-A-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VESTA TW29 GEN 2. Key specifications: voltage - forward (vf) (typ) 52.4V, color White, Warm / White, Cool, current - max 1.8A, size / dimension 32.05mm L x 32.05mm W.
In Stock: 224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Cool |
| CCT (K) | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 6878lm (Typ) |
| Current - Test | 1.05A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 52.4V |
| Lumens/Watt @ Current - Test | 125 lm/W |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 92 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 32.05mm L x 32.05mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 29.60mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-TR-2750G-1KA0-A-23 and get a quote within 24 hours.
