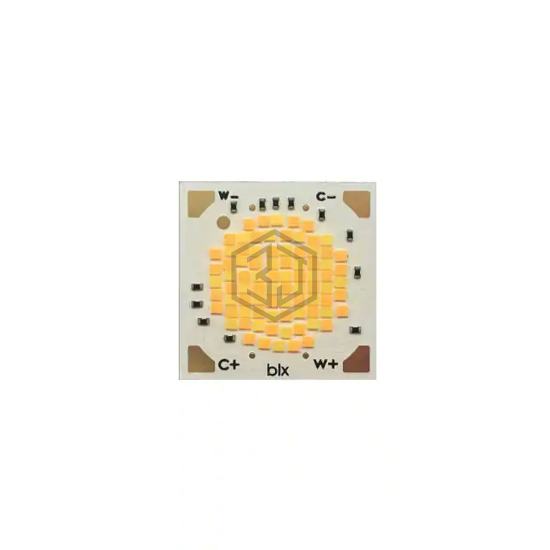

TW LED ARRAY, LES=13MM, INTEGRAT
BXRV-TR-1840G-20A0-A-25-S2 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. TW LED ARRAY, LES=13MM, INTEGRAT. Key specifications: voltage - forward (vf) (typ) 35.2V Warm White, 36.3V Neutral White, color White, Warm / White, Neutral, current - max 700mA, size / dimension 18.80mm L x 18.80mm W.
In Stock: 135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Neutral |
| CCT (K) | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1215lm Warm White, 1980lm Neutral White |
| Current - Test | 500mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 35.2V Warm White, 36.3V Neutral White |
| Lumens/Watt @ Current - Test | 77 lm/W Warm White, 121 lm/W Neutral White |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 18.80mm L x 18.80mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 14.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-TR-1840G-20A0-A-25-S2 and get a quote within 24 hours.
