TW9 GEN 2 TUNABLE WHITE LED ARRA

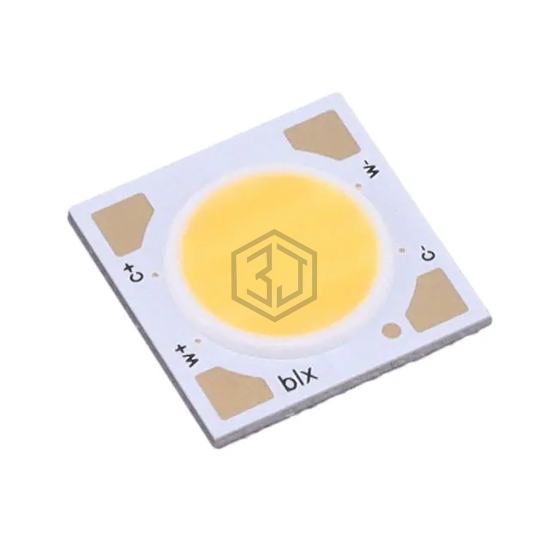

BXRV-TR-1840G-10A0-A-25 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. TW9 GEN 2 TUNABLE WHITE LED ARRA. Key specifications: voltage - forward (vf) (typ) 18V, color White, Warm / White, Neutral, current - max 700mA, size / dimension 15.90mm L x 15.90mm W.
In Stock: 145
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm / White, Neutral |
| CCT (K) | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1060lm |
| Current - Test | 500mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 18V |
| Lumens/Watt @ Current - Test | 118 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 130° |
| Features | - |
| Size / Dimension | 15.90mm L x 15.90mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 10.00mm Dia |
| Lens Type | Flat |
