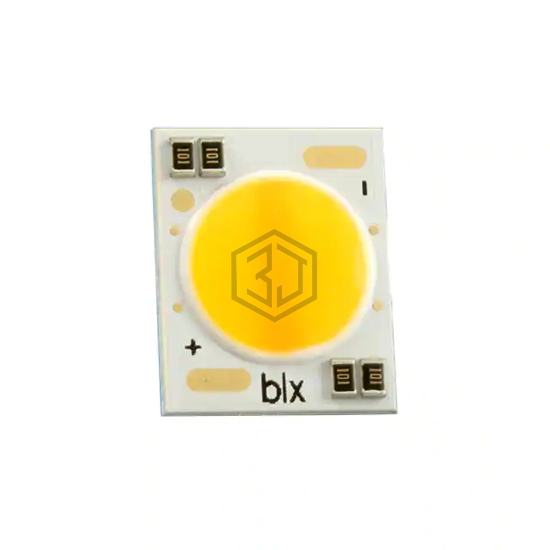

DW9B DIM-TO-WARM LED ARRAY
BXRV-DR-1827G-1000-B-13 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. DW9B DIM-TO-WARM LED ARRAY. Key specifications: voltage - forward (vf) (typ) 33.8V, color White, Warm, current - max 420mA, size / dimension 15.00mm L x 12.00mm W.
In Stock: 785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 1242lm (Typ) |
| Current - Test | 350mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 33.8V |
| Lumens/Watt @ Current - Test | 105 lm/W |
| Current - Max | 420mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 110° |
| Features | - |
| Size / Dimension | 15.00mm L x 12.00mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 9.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRV-DR-1827G-1000-B-13 and get a quote within 24 hours.
