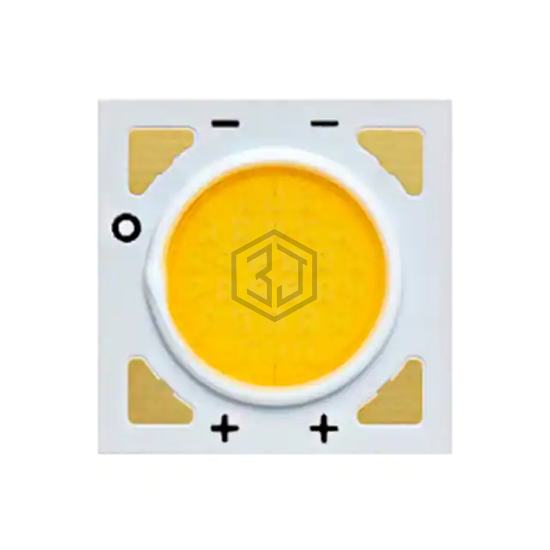

BXRE-65S0801-E-74 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRE-65S0801-E-74

Bridgelux

LED COB WHITE

BXRE-65S0801-E-74 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB WHITE. Key specifications: voltage - forward (vf) (typ) 34.4V, color White, Cool, current - max 350mA, size / dimension 12.50mm L x 12.50mm W.

In Stock: 193

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Cool
CCT (K)6500K 4-Step MacAdam Ellipse
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature771lm (Typ)
Current - Test175mA
Temperature - Test25°C
Voltage - Forward (Vf) (Typ)34.4V
Lumens/Watt @ Current - Test128 lm/W
Current - Max350mA
CRI (Color Rendering Index)98 (Typ)
Viewing Angle120°
Features-
Size / Dimension12.50mm L x 12.50mm W
Height1.70mm
Light Emitting Surface (LES)9.00mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRE-65S0801-E-74 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB WHITE

The supply voltage of BXRE-65S0801-E-74 is 34.4V.

The color of BXRE-65S0801-E-74 is White, Cool.

The current rating of BXRE-65S0801-E-74 is 350mA.
