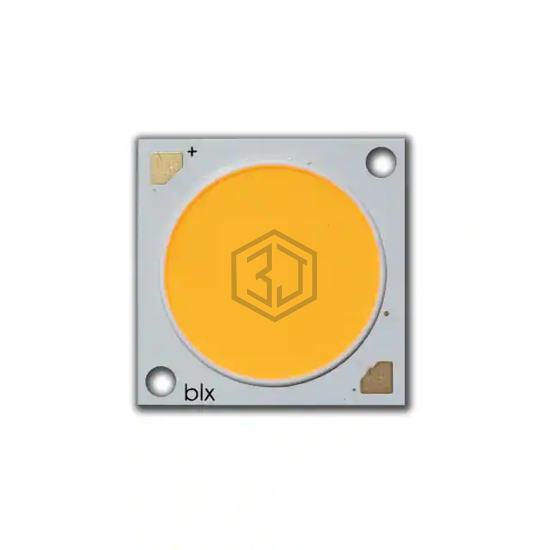

V22C COOL WHITE LED ARRAY
BXRE-65E6501-C-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V22C COOL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 50.7V, color White, Cool, current - max 3.5A, size / dimension 28.00mm L x 28.00mm W.
In Stock: 278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 11206lm (Typ) |
| Current - Test | 1.2A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 50.7V |
| Lumens/Watt @ Current - Test | 184 lm/W |
| Current - Max | 3.5A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 23.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-65E6501-C-83 and get a quote within 24 hours.
