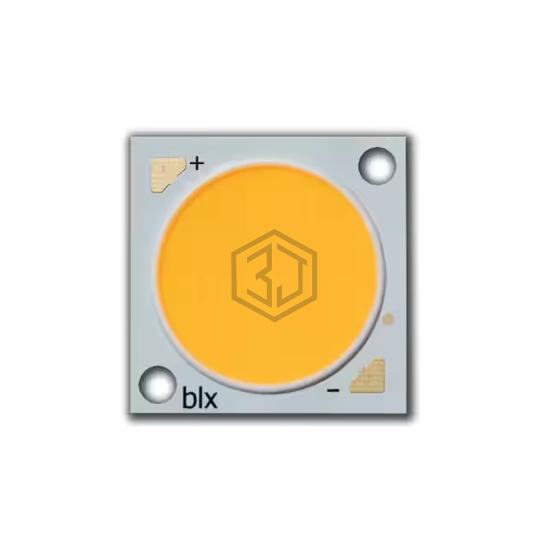

BXRE-65E4001-C-83 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRE-65E4001-C-83

Bridgelux

V18C COOL WHITE LED ARRAY

BXRE-65E4001-C-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V18C COOL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 33.9V, color White, Cool, current - max 3A, size / dimension 24.00mm L x 24.00mm W.

In Stock: 580

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Cool
CCT (K)6500K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature6475lm (Typ)
Current - Test1.05A
Temperature - Test25°C
Voltage - Forward (Vf) (Typ)33.9V
Lumens/Watt @ Current - Test182 lm/W
Current - Max3A
CRI (Color Rendering Index)80
Viewing Angle120°
Features-
Size / Dimension24.00mm L x 24.00mm W
Height1.65mm
Light Emitting Surface (LES)19.60mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRE-65E4001-C-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V18C COOL WHITE LED ARRAY

The supply voltage of BXRE-65E4001-C-83 is 33.9V.

The color of BXRE-65E4001-C-83 is White, Cool.

The current rating of BXRE-65E4001-C-83 is 3A.
