V10C COOL WHITE LED ARRAY

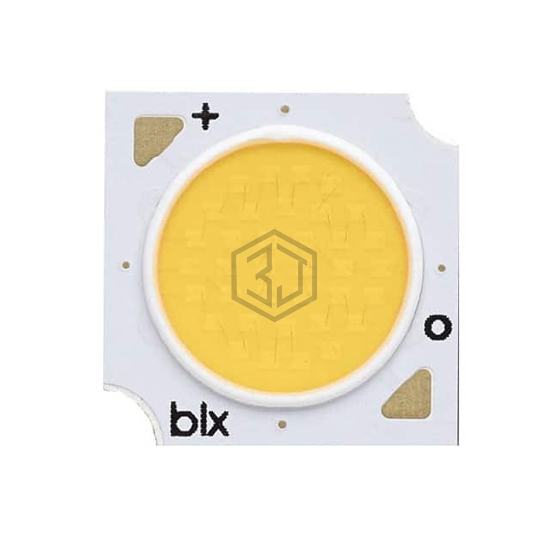

BXRE-65E1001-C-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V10C COOL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 33.8V, color White, Cool, current - max 720mA, size / dimension 13.50mm L x 13.50mm W.
In Stock: 4,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1870lm (Typ) |
| Current - Test | 360mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 33.8V |
| Lumens/Watt @ Current - Test | 154 lm/W |
| Current - Max | 720mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 10.20mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-65E1001-C-73 and get a quote within 24 hours.
