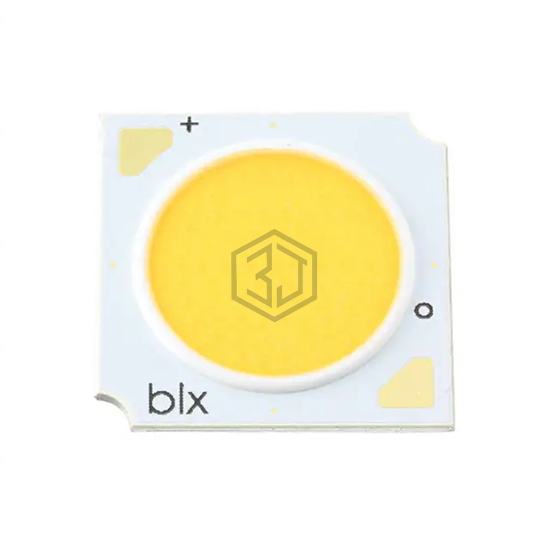

LED COB V13 4000K SQUARE
BXRE-40E2000-C-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB V13 4000K SQUARE. Key specifications: voltage - forward (vf) (typ) 33.9V, color White, Neutral, current - max 1.26A, size / dimension 19.00mm L x 19.00mm W.
In Stock: 1,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 3170lm (Typ) |
| Current - Test | 630mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 33.9V |
| Lumens/Watt @ Current - Test | 148 lm/W |
| Current - Max | 1.26A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | - |
| Features | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 14.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-40E2000-C-73 and get a quote within 24 hours.
