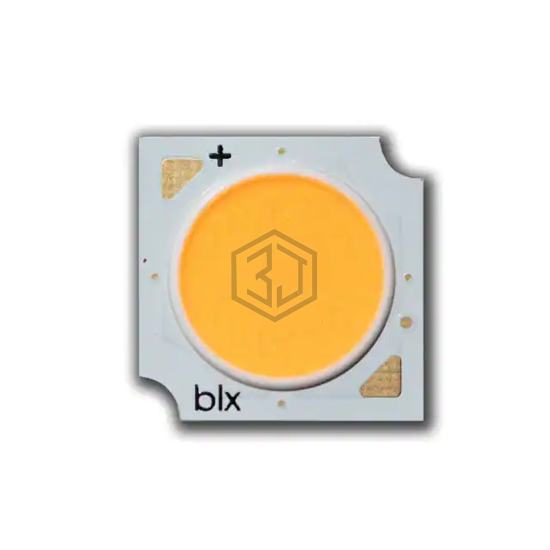

V10C WARM WHITE LED ARRAY
BXRE-35E1000-C-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V10C WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 30.7V, color White, Warm, current - max 1A, size / dimension 13.50mm L x 13.50mm W.
In Stock: 598
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1680lm (Typ) |
| Current - Test | 300mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 30.7V |
| Lumens/Watt @ Current - Test | 182 lm/W |
| Current - Max | 1A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 10.20mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-35E1000-C-83 and get a quote within 24 hours.
