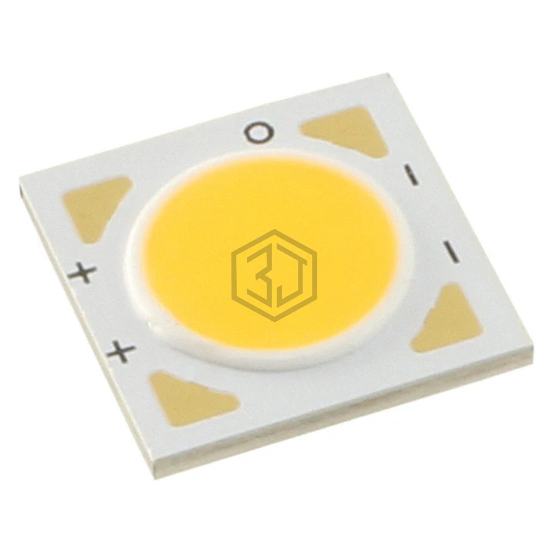

LED ARRAY 800LM WARM WHITE COB
BXRE-30G0800-B-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 800LM WARM WHITE COB. Key specifications: voltage - forward (vf) (typ) 17.4V, color White, Warm, current - max 700mA, size / dimension 12.50mm L x 12.50mm W.
In Stock: 131
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 578lm (Typ) |
| Current - Test | 350mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 17.4V |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 8.10mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-30G0800-B-23 and get a quote within 24 hours.
